Garage Door Photo Guide
These supplied photographs illustrate door hardware and work settings. They are not labelled as Trilobite jobs, Ardmore addresses or customer endorsements.
The lift system above the opening
The spring shaft and lift cables work with the door’s weight; the ceiling operator is not a substitute for sound counterbalance hardware.
Working clearance at the head of the door
Space at the header and along the ceiling affects access for inspection and the path available for the track.
Access is part of the job plan
Ladder positions, parked vehicles and stored belongings need to be considered before work is performed above the opening.

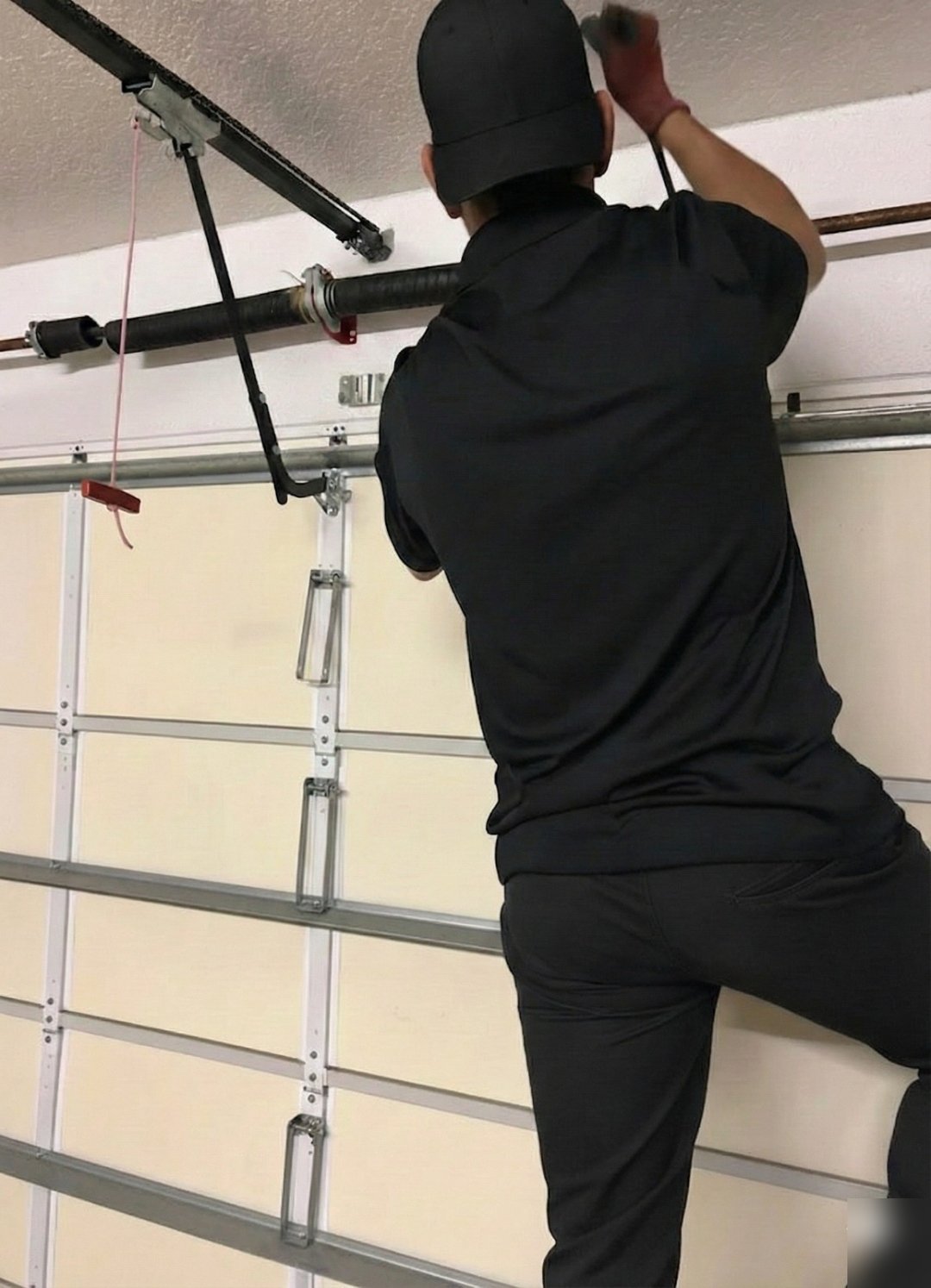

Upper hardware, not a homeowner adjustment
Springs and associated hardware can store substantial energy. This guide is for identifying a component, not for teaching tension adjustment.
Parts on the floor, door kept still
An in-progress repair is not a cue to operate the remote. Moving the door can disturb loose or unsupported components.

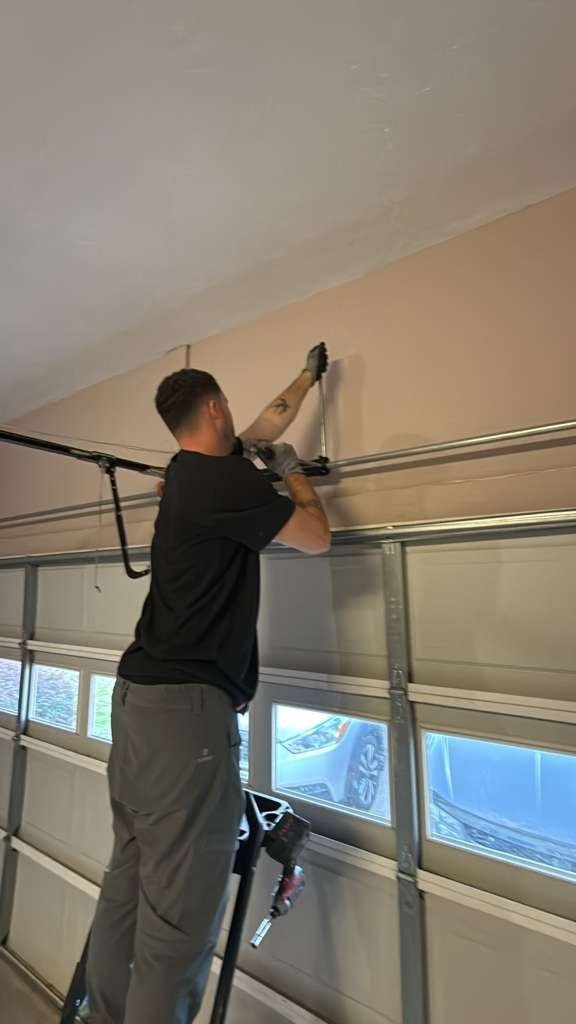

Light through a glazed top section
Glazing and panel construction affect the door assembly. A replacement section must be compatible with more than the visible finish.
Inspecting the top of the travel path
The overhead rail and upper section are part of the same moving system as the lower hinges and rollers.
The guide path along the jamb
A roller needs a clear, aligned path. Side hardware should be examined with the door stable rather than forced through a bind.
Not every spring fits every door
Spring selection depends on the door arrangement. A part that looks similar in storage is not enough to establish a correct match.
Protecting the work area
Loose parts need room to be laid out and checked. Mention tight vehicle clearance when discussing the visit.
Describe What You Can See Safely
Use a photo here to find a useful word, such as “spring shaft,” “track” or “top section.” Do not climb, remove a cover or touch a loose cable to imitate the view. If the door is crooked or unsupported, a description from outside its travel path is sufficient.
Read the relevant page for spring repair, track work, panels or opener installation. For an active fault, call with the door position.
